Our machining department is increasing its productivity : a new robot has been commissioned and another one has been ordered for the end of the year

What about forging ? It is now done : read our reasons for robotizing the forge !

In this newsletter we propose a technical review on the forging dies. You may also have a glance at our supply chain experts who are tracking your purchase orders and ensure our customer service.

Moving forward together : let’s work on your projects !

If you think this newsletter might be of interest for your colleagues, please transfer it !



“Stevenin Nollevaux is a very solid and reliable supplier with a high level of responsiveness”

This customer is pointing out a key driver of our strategy : our permanent mission is to focus on the satisfaction of our customers.

A marketing issue : Your needs are known very suddendly and the quantities may vary a lot. Don’t worry : we are committed to do more than basic order processing :

Anticipating :
is the principle of our communication with you.
Planning :
is our challenge

Our team is happy to offer you the best flexibility : this is Laurence’s and Sebastien’s every minute task !
You may contact them any time :
order@stevenin-nollevaux.com

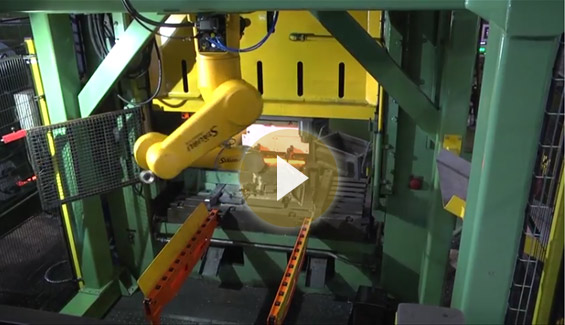

This forging line is currently operated by 3 people working in 2 shifts : forging, trimming, inspection

Advantages with the use of the robot : 2 operators per shift only run the line so we save the cost of 2 people in total and we reduce the fatigue of the workers.

Investment : 200 K€

Cost for adapting an existing tooling :5000 € per tooling at our cost. This can be justified for a selection of parts running with sufficient annual quantities . For new components the cost will be less as it will be integrated in the original study.

Our challenge : offer competitive prices on the market and win new products.

Aiming for excellence ! Setting the parts into the trimming tooling will be more precise with a higher level of repeatability.

This is excellent for our customers : the best quality at reduced costs !

Advantage on the long term : this positive experience will be very valuable for implementing robotics on the 3 other forging lines …

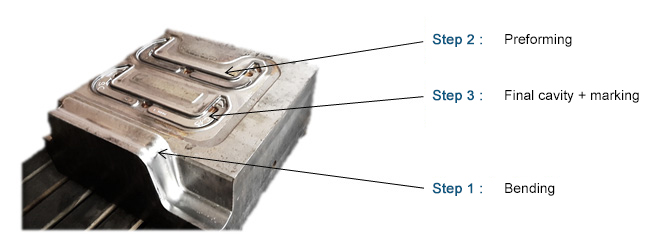

A set of tooling is necessary to produce a forging; it consists of dies, trimming and punching tools, and in some cases bending or coining tooling.It is designed and produced in our own tooling shop. In this newsletter we want to focus on the dies : The dies (upper and lower) are the heart of forging, giving the shape to the part, thanks to a cavity or multiple cavities, with preforming and final forming areas.

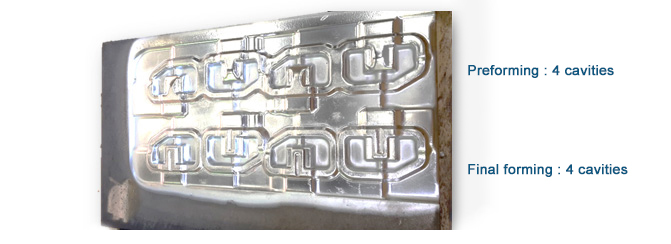

We forge with forging hammers, not presses : this choice has been successful since the parts can be produced at a low cost; the die below has 4 cavities so 4 parts are forged together.

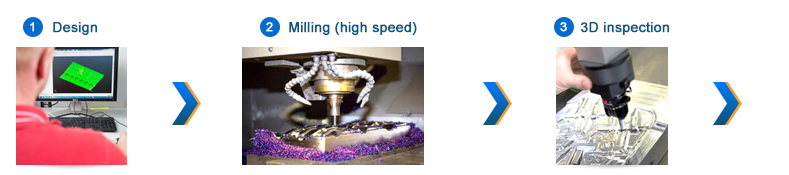

How we proceed :

2 different treatments will be applied in order to improve the lifetime of the dies :

Nitride hardening : the nitride brought by this heat treatment hardens the surface of the cavities up to 1000 HV.

Hard chrome plating : a 0.05 mm thickness chromium layer is deposited in order to reduce abrasion and to help the metal glide into the cavities.

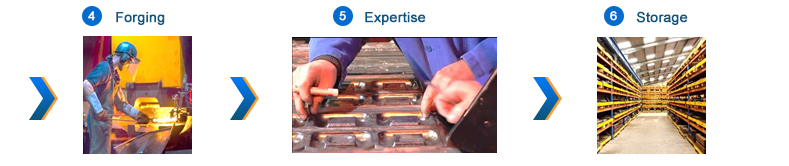

Quality tooling produce quality forgings : therefore its maintenance is strategic. A specific care must be taken from the manufacture to the storage : after the production of each batch of forgings the tooling is systematically expertized.

In case the tooling must be repaired or completely remanufactured, we decide it and plan it right after the expertise. There is absolutely no impact on cost, lead time or technical matter for our customer : this is our internal way of working.

And for strategic products we always have a brand new tooling in stock !






  ELMIA SUBCONTRACTOR SWEDEN, 8-11 november 2016

Scandinavia is our second biggest market in Europe: come and discover our products and co-designing possibilities on our
stand B02 / 83





YOUNG PEOPLE ARE WELCOME !!

Aubin studies at the forge and foundry technical school. He has been appointed by our technical department with a double mission : develop the numerical simulation with our software and study the conditions of forging stainless steel components. He speaks english so let’s talk about your projects !
